Introduction

This customer went through ice maker replacements multiple times with other companies and the new units never lasted more than a couple weeks. Each new unit would stop making ice again and the customer understandably did not believe that we would be able to do anything different. What we did that distinguished us from the other companies is the focus of this case study. Here we will lay out the recurring problem and each diagnosis step that we took to come up with a lasting solution as Home Appliance Care.

The Customer Issue

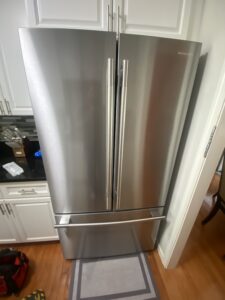

Our customer said their ice maker repeatedly broke and had to be replaced multiple times by different companies. They went through multiple ice maker replacements, and each time, the new ice maker would only work for a while. Then it would break the same way the previous one did, and the customer would have to replace it again. They had already spent a lot of money to have the ice maker replaced multiple times. This type of situation is more common than most people think, and it typically means the actual issue was never really found and resolved. Changing the ice maker treats the issue like a symptom and not the actual cause, which is why the customer had the same problem (broken ice maker) even after multiple replacements.

Why Previous Replacement Attempts Didn’t Work

Ice maker malfunction tends to prompt the consumer to replace the entire unit since it is a quick, easy, and reasonable response; especially in the cases of a faulty motor or control module. The completely new unit does not solve the problem however, if there is damage occurring externally to the ice maker. In this case, replacement was redundant since the primary issue was found in the water delivery system. Since the issue was at the point where the water fills the ice tray, it was a problem that was guaranteed to be a constant obstruction to replacement. The customer was repeatedly frustrated by the same ice maker malfunction and it was the same problem that several companies were solving for when they installed new parts.

Our Diagnostic Approach

Before carrying out the typical procedure of replacing the ice maker, our technician performed a complete, system-wide, ice-making diagnostic. Most ice maker repairs focus solely on the ice maker itself. Each service request deserves a detailed diagnostic examination of the entire system, surpassing the limitations of the ice maker. We examine the entire water fill tube system, the heater assembly, the ice tray, the harvest motor, and the duration of the complete harvest cycle. During this particular ice maker repair service, our technician observed what had been previously overlooked by the other repair technicians. The water fill tube system was leaking a small amount of water after each of the ice-making cycles.

The Real Root Cause: A Dripping Water Fill Tube

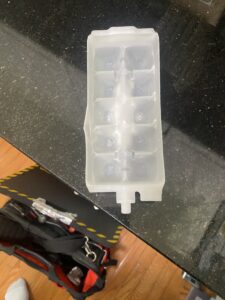

The small drip was determined to be the root cause for the failed replacements. The water fill tube heater extended insufficiently towards the fill tube opening, leaving a droplet of water after every fill. After several cycles the water droplet froze to the tube fill tip as a small, hard, iceberg style chunk. During the ice harvesting cycle, the ice tray twists and flexes to release the ice. The ice formed on the fill tube tip, and the ice tray was then driven against the ice to flex the tray. This caused the ice tray to be damaged, and caused the entire unit to be rendered inoperable.

It provides insight into the recurring failures the customer encountered. The cause of the recurring issue for the customer was the water fill tube. The customer had to replace the unit multiple times in vain because the cause of the issue was not addressed. Damage to the ice tray was incurred in the same time span, and the same iceberg style buildup occurred on the water fill tube.

The Fix: Extending the Water Tube Heater

After determining the water fill tube was the primary issue, a complete replacement was no longer offered. We used metal tape to extend the water tube heater to allow the heater’s warmth to reach even further down the tube. This enhancement allowed the heater to cover the entire length of the water fill tube. Instead of freezing, the water droplets are now kept warm and completely drained, preventing the damaging effect of ice.

With the actual issue now addressed, the damage to the tray no longer needed to be repaired due to our replacement of an intact part. This method demonstrates a commitment to ice maker repair and an approach other companies lacked. This method focuses on the problem and not the part replacement and moving on.

Why This Ice Maker Permanent Fix Works Long-Term

Ice maker permanent fixes must address the real mechanisms of failure. Simply treating the visible failure symptom will not fix the issue. In this situation, the symptom of failure was the broken ice tray and inoperable unit. The actual failure mechanism was the water fill tube under heated and thus moisture would freeze at the end of the fill tube. Instead of masking this issue, we extended the reach of the tube heater with metal tape. Now water is not able to freeze, there will be no more icebergs at the fill tube, and no more broken ice trays due to the ice making unit failure and damage during the harvest process.

Since we completed this ice maker repair, the customer has not experienced any failures. The ice maker has continued operating normally without the previously damaging ice maker jams. This is a typical customer expectation from a service call. Customers expect solutions that last and do not require constant and laborious repairs. In this instance, the customer received the type of repair that is usually anticipated, but in this case is the repair that is most often needed.

Common Signs Your Ice Maker Needs a Proper Diagnostic

Though customer water fill tube problems may differ from this case, there are many instances that suggest that, instead of a normal worn part, there is a deeper, more complex issue. A comprehensive evaluation and diagnostic-based ice maker repair may be in order instead of another replacement if any of the following are applicable:

• The ice maker has already been replaced once (or several times), and each replacement has failed in a consistent time frame.
• Hard, oddly shaped ice is found in the fill tube area, back of the tray, or elsewhere in the unit.
• The ice tray has visible cracks, chips, or signs of stress, and the replacement is not old.
• The unit’s harvest cycle sounds like it is straining, grinding, or having difficulty completing the cycle.
• There is a noticeable decrease in production before the unit completely stops producing ice.

Each of these signs, individually and in combination, indicates that the ice maker is failing to perform due to another, underlying issue in the system, as was the case for this customer.

How to Prevent This From Happening to You

While this fix pertained specifically to a water fill tube heater which did not extend far enough, a similar situation can apply to most issues that repeat with other appliances. If the same part keeps failing after being replaced, the best course of action is to stop replacing that part and do a full diagnostic instead. Someone with the experience to do proper ice maker repair should be evaluating everything related to the broken part, including the tubing, heaters, sensors, and the controls and the timer. Regular preventative maintenance to check the water fill tube and heater assembly during ice maker repair can stop issues like this before they start impacting the appliance on a larger scale.

Lessons From This Case Study

This case study shows us something very important when it comes to troubleshooting appliances, especially when it comes to ice maker repair. If a part is constantly breaking and needs to be replaced, stop replacing the part and start evaluating what else is affected by that part. A broken ice maker is commonly seen by most as a broken part, when in fact that may be just the first level of the breakdown.

• The following points provide a look at refrigerator ice maker repair from the point of view of a homeowner who has experienced the issue repeatedly and unsuccessfully.
• Replacing the same part more than once should not be interpreted as a streak of bad luck. If a replacement fails again quickly, a culprit likely exists outside the unit and is acting on the replaced part.
• Replacing a part quickly should not be favored over a full diagnostic. Previous repairs to this unit have failed because a diagnostic was skipped, resulting in missing the water fill tube which was leaking.
• Small details, like ice build up in a tube, can damage other components like trays and motors as well as the harvest mechanism over time.
• Repairing an ice maker should address the actual cause even if the repair is as simple as extending a heater with metal tape.

Summary

After replacing an ice maker, persistent malfunctions are rarely a matter of bad luck or an out-of-the-box defective component. As demonstrated in this case study, the real reason can be hiding entirely elsewhere, causing cyclical, incremental damage until finally discovered. Our ice maker repair procedure always begins with a comprehensive diagnostic analysis of the system as a whole and not just the visually faulty component. That process enabled us Home Appliance Care to discover the water fill tube malfunction and design a permanent custom solution for the ice maker. Now, for the first time since the original purchase, this client has an ice maker that functions as intended, cycle after cycle, with no further replacements.

If your ice maker continuously malfunctions, even after an ice maker replacement, then don’t fall into the same cycle yet again. An informative diagnostic-driven ice maker repair will uncover the actual cause of the malfunction and remedy the situation for good.
